SOLID GRN 785 TX Two-component, solvent-free epoxy resin based, orange peel patterned epoxy top coat.
PRODUCT DESCRIPTION
SOLID GRN 785 TX Two component, solvent free epoxy resin based, orange peel patterned epoxy top coat.
APPLICATION ENVIRONMENTAL CONDITIONS
Ambient temperature should be between +15°C and 35°C. Application should not be made in cases where the relative humidity exceeds 80%. The surface temperature must be at least 3-5 °C above the dew point to avoid surface condensation.
It should be known that the consumption will increase in the application to be made at low temperatures. The surface temperature should be at least +5°C and maximum 45°C high.
PACKAGING

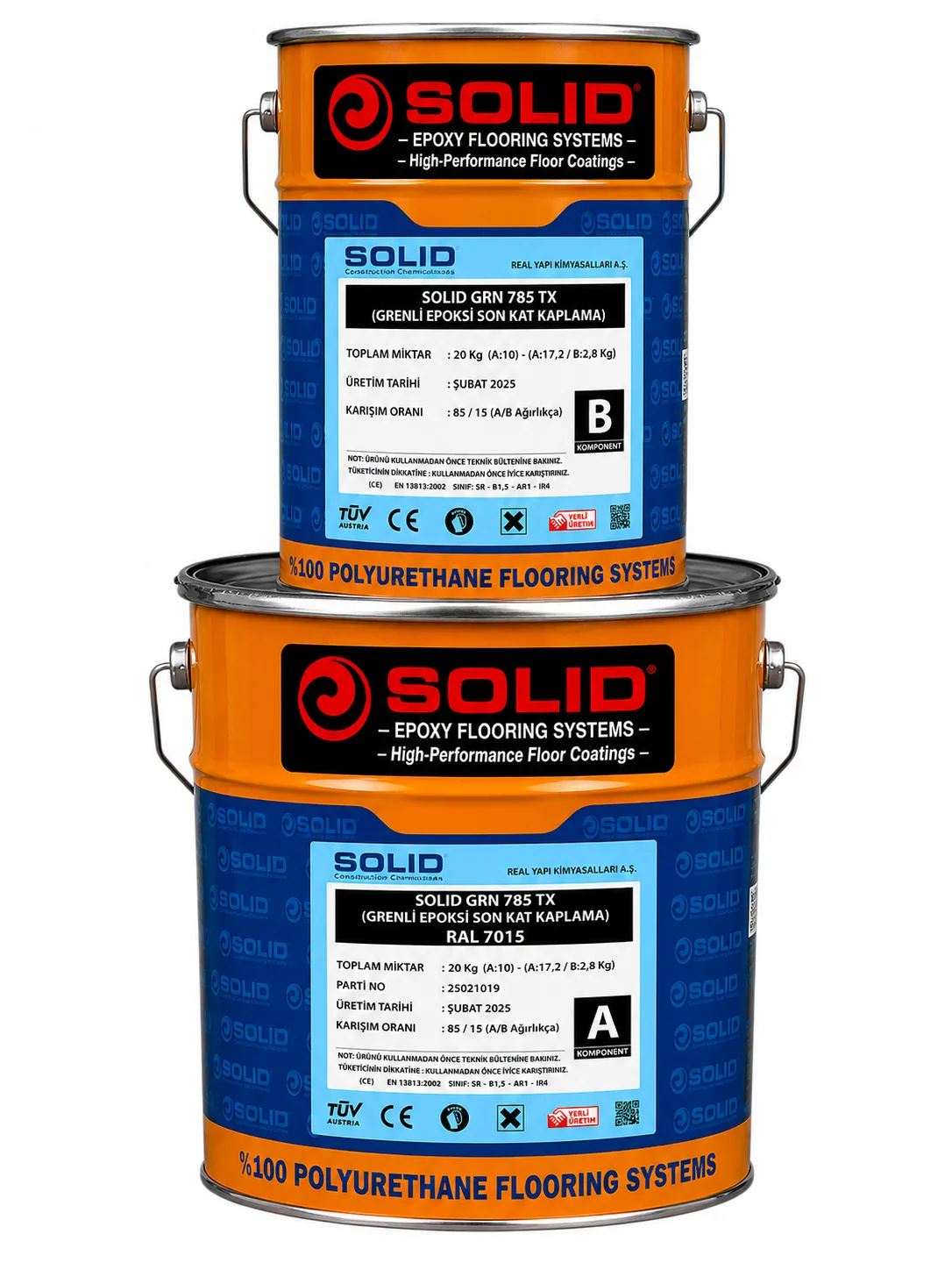

A bucket of SOLID GRN 785 TX Component A is 17.20 kg net.
One gallon of SOLID GRN 785 TX Component B of Hardener is 2.80 kg net.
SHELF LIFE
The material should be stored in a cool and dry place in its original packaging. The storage life of the material in the unopened package is 12 months for the A and B components.
HEALTH AND SAFETY INFORMATION
Read the MSDS form (Material Safety Data Sheet) for necessary safety rules and warnings. The minimum safety rules to be followed are as follows.
• The skin and eye contact of the product should be prevented by using gloves, safety glasses, face mask, and industrial cream.
• Adequate air circulation must be provided during the application and until the paint dries.
• If the product comes into contact with the skin, it should be washed with warm water and soap or an industrial cleaner. If splashing occurs in the eyes, rinse with water for at least 10 minutes and seek medical attention.
• All warning notes on buckets should be read carefully and recommended operating rules should be followed.
*Our information about the products has been prepared, under normal conditions, based on our own laboratory experiments and research. Our company is not responsible for working under unsuitable application conditions. The right to change this information is reserved by our company. For more detailed information, please apply.

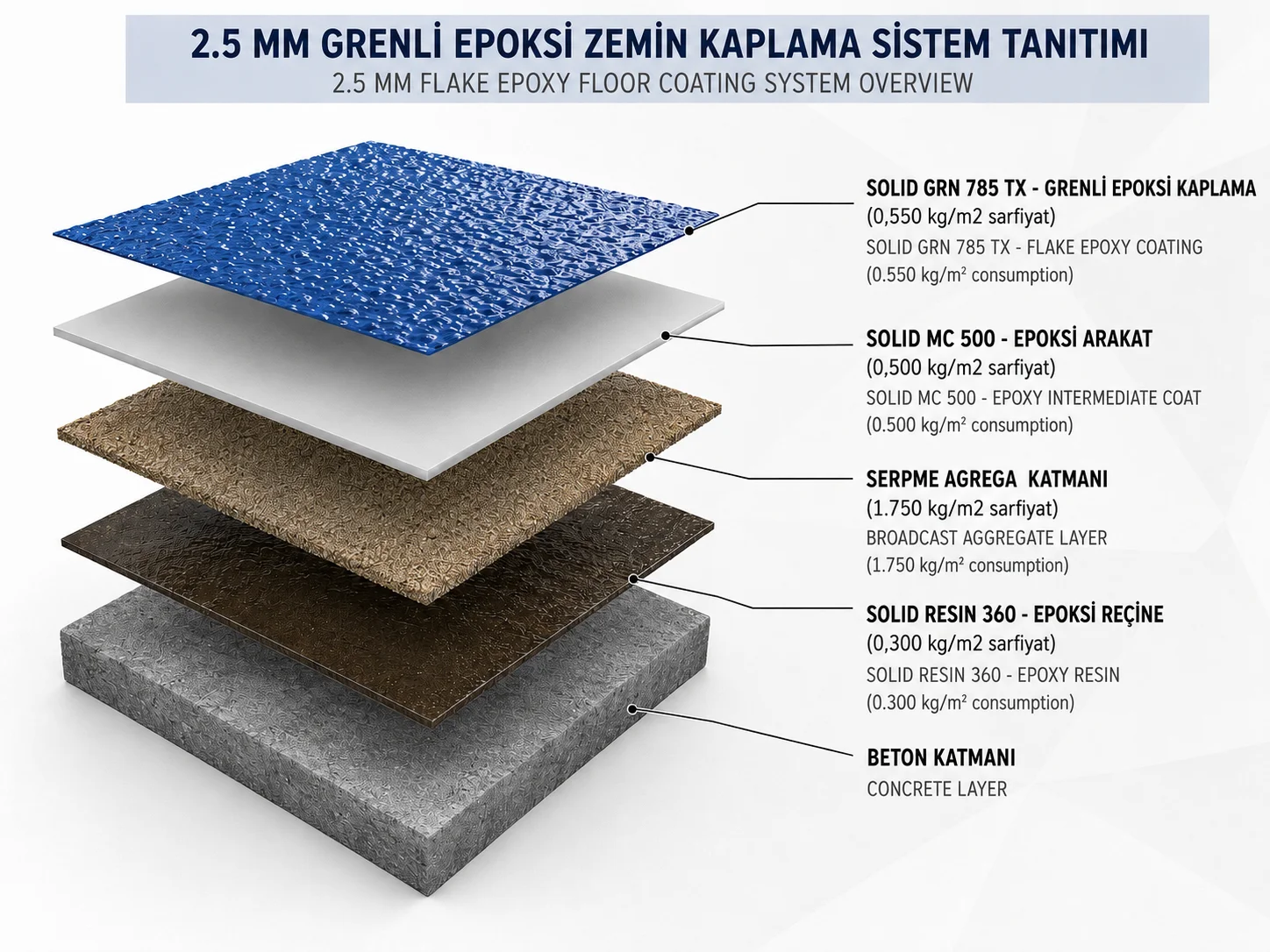

SOLID GRN 785 TX This flooring system offers perfect surfaces in all colors.
SOLID GRN 785 TX usage areas;
It is used in parking lots, stores, factories, assembly workshops, warehouses, aircraft hangars, food facilities, hospitals, chemical and pharmaceutical industries, power plants, units where hygiene is required, all industrial floors, with high mechanical strength and abrasion resistance, stain-proof (tea, coffee, ketchup, salt water, detergent water, engine oil, hydraulic oil, 20% caustic solution, 10% acetic acid solution), easy to clean, solvent-free epoxy coating with orange peel pattern.
| *TECHNICAL SPECIFICATIONS | |
|---|---|
| View | Half Matte |
| Color | In Desired Ral Codes |
| Density (gr/ml 20ºC) | 1,60 ± 0.05 |
| Mix Ratio(Weightça) | A Comp. 86 units B Comp.14 units |
| VOC content | <48 g/l |
| Weight Solids(w/w) | 98% ± 2 |
| Press&c; Expenditure on Strength | 46 N/mm2 |
| Shore D Hardness | 74 ( 7 days / + 24 0C 50 % relative humidity) |
| Bending strength | 22 N/mm2 |
| Adhesive strength | ≥ 2.7 N/mm2 |
| Viscosity | Consistent |
| Application Method | Trowel, Brush, Roller |
| Abrasion Resistance | 68 mg ( 7 days / + 23°C |
| Full cure | 4-7 days |
| Mixture Life (20ºC) | 45-50 Minutes |
*DRYING INFORMATION (100 micron DFT)
| Touch Dry | Hard Dry | Waiting Times Between Levels (Minimum) | |
|---|---|---|---|
| -5°C | 12 hours | 29-30 hours | 24 hours |
| 0°C | 9 hours | 20-21 hours | 18 hours |
| 5°C | 6 hours | 13-14 hours | 12 hours |
| 15°C | 120-160 min. | 5-6 hours | 3.5 hours |
| 25°C | 80-100 min. | 3-4 hours | 2 hours |
| 35°C | 60-80 min. | 1.5-2 hours | 1.5 hours |
NOTE: As the application thickness increases, the drying time also increases.
| CONSUMPTION Wet Film Thickness (µ) | Dry Film Thickness (µ) | Theoretical Consumption ± 10 (gr/m²) |
|---|---|---|
| 345 | 340 | 550 |
NOTE: As the application thickness increases, the consumption also increases.
Surface Preparation
The drill surface is carefully cleaned of dirt, oil and grease. Loose old paint (on previously painted surfaces) is removed. Rust and burrs on the surface are cleaned with a diamond-tipped machine according to SA 2 ½ norms. Masks should be used in spraying exercises. Very good ventilation is required, especially in small, confined spaces.
Use of the Product
Before using SOLID GRN785, its components are thoroughly mixed separately. Then a homogeneous mixture is made with its own hardener. It is applied only to a dry and clean surface with a temperature above the dew point to prevent condensation. Paint temperature should be 20-35°C. Thinning may be required for very long spray hoses and paint temperatures lower than 15°C. This can result in lower film thickness and longer drying times.

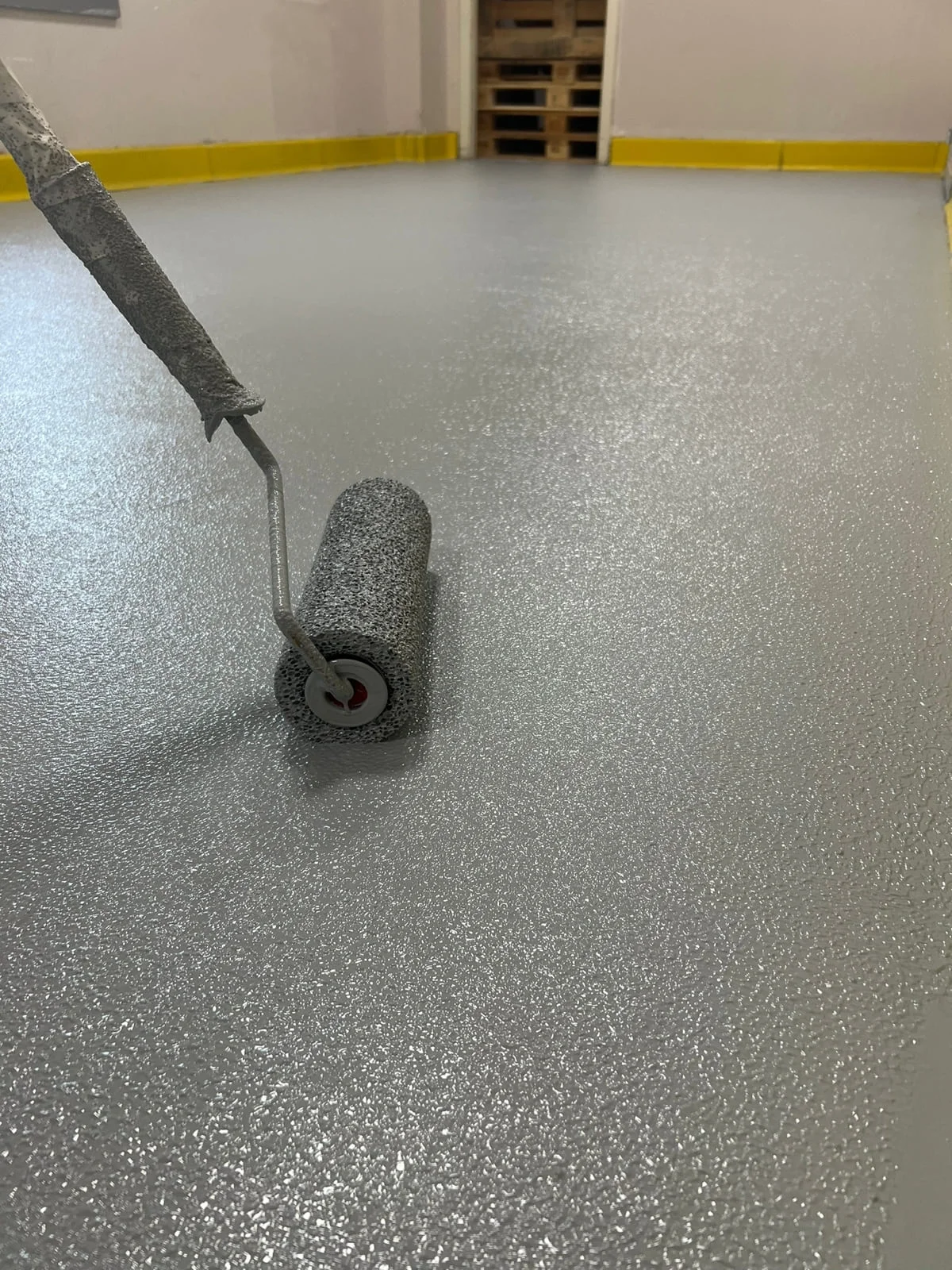

form of application; done with a brush, roller or gun. Masks should be used in applications made by spraying.
